Tapping flange for Round Tube Piping System
Tapping flange

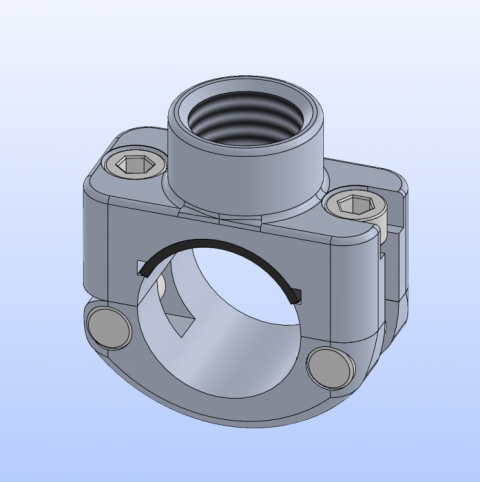

The Kaisair tapping flange can be clamped around the corresponding round tube at any point. After setting the infinitely variable desired angle, the tapping flange is clamped with the two screws. The use of the Kaisair drilling template and a ball valve enables drilling under operating pressure. The tapping flange is available with an inner diameter range of 1/2 ″ – 1 1/4″ depending on the pipe size.
Technical specifications
Tapping flange round pipe
| dimensions [mm] |
weight [Gramm] |
surface | order number |
|---|---|---|---|
| Ø 25: IG = ½” Rohr Ø = 25 |
90 | nature | 025 410 0012 |
| Ø 38: IG = 3/4” Rohr Ø = 38 |
180 | nature | 038 410 0034 |
| Ø 50: IG = 3/4” Rohr Ø = 50 |
230 | nature | 050 410 0034 |
| Ø 75: IG = 3/4” Rohr Ø = 75 |
775 | coated | 075 410 0034 |
| Ø 75: IG = 1 1/4” Rohr Ø = 75 |
731 | coated | 075 410 0114 |
